X-FineRework-LX Series Rework System for boards up to 14" wide |
X-FineRework-LX is a Unique, Modular Digital PID Control SMT Rework/Repair System with a Pre-heater. This new generation system offers precise and accurate monitoring of process temperatures at a working point on a PCB. Also, allows pre-setting of exact temperature of air stream at the end of Hot Air Tool, Hot Air Pencil Nozzles and at a tip of Soldering Iron. Board Holder with X and Y micrometer adjustments and precision rotation stage allows fine alignment of a component with the corresponding land pattern on the board. The accuracy is achieved by a unique feature, user adjustable offset, which compensates for differences in PCBs' being reworked (dual or multi-layer, high and low mass) in case of pre-heater settings, and differences in tips or nozzles
in case of soldering iron tip and hot air stream temperature settings.
The unique, high performance of the unit is possible due to use of the newest microprocessor technology and thorough programming of all control and monitoring functions combined with PID temperature control of all heaters.
- Designed for Lead Free.
- Programming updates via direct connection to PC using USB port.
- Programmable in five zones (top heater) and simultaneously in five
zones from the bottom (pre-heaters).
- Air Volume Control of the Pre-heaters (User setting from the front
panel).
- Accurate and precise temperature settings and monitoring at the
working point on the board:
- State of the art microprocessor technology,
- PID control of all heaters (accuracy and extended heaters' life)
- User-adjustable offsets for pre-heater and soldering tools
- Digital display of settings and actual parameters on front panels.
- Repeatability of the process from board to board (digital storage of
profiles and settings).
- Large area board holder with precise micrometer adjustments in X and Y
axis, which accommodates boards up to 14" wide
- Enhanced alignment of a part with pads on a board with precise rotation of
a top hot air/gas tool, which is mounted in a fine adjustment rotation
stage.
- Programmable time/temperature settings (profiling with cool mode and
profile storage)
- Ease of use. Rework process controlled by Focus"X" control
panel.
- Both Focus"X" and SMT-ServiCE can be used as independent Rework
Systems.
- Large selection of standard, lightweight nozzles. Custom nozzles are
available upon request.
- Fully antistatic. Supplied with ESD grounding wire and a wrist strap

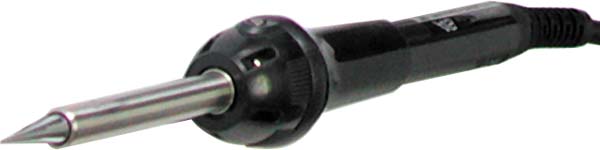

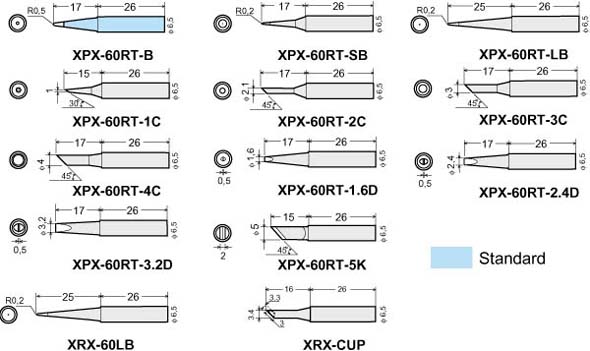

- Built-in Hot Air Pencil/Iron and Vacuum Pick-up Tool.
- Self-contained air and vacuum sources.
- Solid and strong metal (not plastic) construction guaranteeing long
service life.
- Compatibility with all X-KAR Brand Rework Attachments and Accessories
(XIL-2 High Intensity, long life Illumination System, XHT-1P Small Handle
Hot Air Tool, XmP-1S Micro Print Head Set, XK-AL Series Holders with Auto
Lift at the end of reflow cycle, etc.).
|
X-FineRework-LX includes: |
X-FineRework-LX Series
For Large Boards and with Base Containing Hot Air Pencil, Iron and Vacuum
Pick-up |
|
|
|
|
|
|
|
|
Please Choose base combination, which BEST suites your
needs and budget |
- Programmable, Intelligent SMT Rework/Repair Unit. Patented in US, Japan and Europe
- Digital PID Control Unit with
integrated Pre-heater Base, Hot Air Pencil, Iron and vacuum Pick-up
- Open Frame Board Holder with X Y micrometer positioning
of PCB for boards up to 14" wide
|
Tool Stand with up/down Z axis movement |
High Intensity, long life Illumination System |
with precise rotation, and Auto Lift |
with precise rotation |
with Auto Lift |
|
What it Contains |
FOCUS"X1" |
SMT-ServiCE |
XU-5 |
XK-3AL |
XK-3 |
XK-2AL |
XK-2 |
XIL-2 |
X-FineRework-LX-AL-IL |
X |
X |
X |
X |
|
|
|
X |
X-FineRework-LX-AL |
X |
X |
X |
X |
|
|
|
|
X-FineRework-LX-IL |
X |
X |
X |
|
X |
|
|
X |
X-FineRework-LX |
X |
X |
X |
|
X |
|
|
|
X-FineRework-LX2-AL-IL |
X |
X |
X |
|
|
X |
|
X |
X-FineRework-LX2-AL |
X |
X |
X |
|
|
X |
|
|
X-FineRework-LX2-IL |
X |
X |
X |
|
|
|
X |
X |
X-FineRework-LX2 |
X |
X |
X |
|
|
|
X |
|
All systems additionally include:
- Nozzle #107 - Nozzle XNB-27x27 for BGA225 Component
- XCB-1R - Cord connecting Focus "X" with Pre-heater Based
Rework System SMT-SerwiCE or Preheaters X-1000.
If you need any other, not listed combination, please contact either the
distributor or factory direct at: bokar@bomir.com.
We will certainly accommodate you and give you what you really need.
Please note that all X-KAR Subsystems are interchangeable. You will be able
to add later any other subsystem if you needed. E.g. Use XK-4 instead of XK-2 or
change manual lift for Auto-lift or interchange SMT-ServiCE with X-1001
Pre-heater etc.
High Precision Adjustments
(X-Y in the Board Holder and rotation of the Hot Air Tool)
Optional and absolutely recommended accessories:
- XFR-Commander Control Software
which brings X-FineRework to another level
- X485-USB Converter A Converter which
allows for connection of FOCUS "X" and SMT-ServiCE to a PC
(Desktop or Laptop) to upgrade Firmware (if needed) and to control and
program entire system from a PC.
